Armasight PVS-14 Gen 3 Pinnacle Night Vision Monocular
Image (1)
Image 1 of 1
Armasight #NAMPVS14OBG9DX1
Pinnacle, Minimum 2000 FOM
Model #NAMPVS14OBG9DX1
$4699.00
Checking Availability
Out of Stock
Ships in 2-3 business days for Free.
Armasight #NAMPVS14OBG9DH1
Pinnacle, Minimum 2376 FOM
Model #NAMPVS14OBG9DH1
$5199.00
Checking Availability
Out of Stock
Ships in 2-3 business days for Free.
Details
Specs
The Armasight Gen 3 Pinnacle PVS-14 Multi-Purpose NV Monocular is the ultimate choice for superior night vision capabilities. This remarkable monocular is a significant upgrade from our Bravo option, offering improved performance and picture quality that will exceed your expectations.
With the Gen 3 Pinnacle PVS-14 Monocular, you have the freedom to choose between Pinnacle image intensifier tubes with a minimum of 2000FOM or premium Pinnacle 2376 tubes with a guaranteed minimum of 2376 FOM. These Pinnacle tubes, exclusively available in Ghost White Phosphor, are the preferred choice of elite special operators worldwide.
The PVS-14 is not just versatile, but also compatible with a range of accessories, allowing you to utilize it as a handheld device, head- or helmet-mounted night vision monocular. You can even adapt it for use with various camera systems, expanding its functionality to suit your specific needs.
Equipped with an integrated infrared (IR) illuminator, the PVS-14 enhances the available light, providing detailed images at closer distances. Additionally, the manual gain control allows you to adjust the brightness according to your preference, ensuring optimal visibility in any situation. The Gen 3 Pinnacle Armasight PVS-14 is exclusively available in ghost white phosphor.

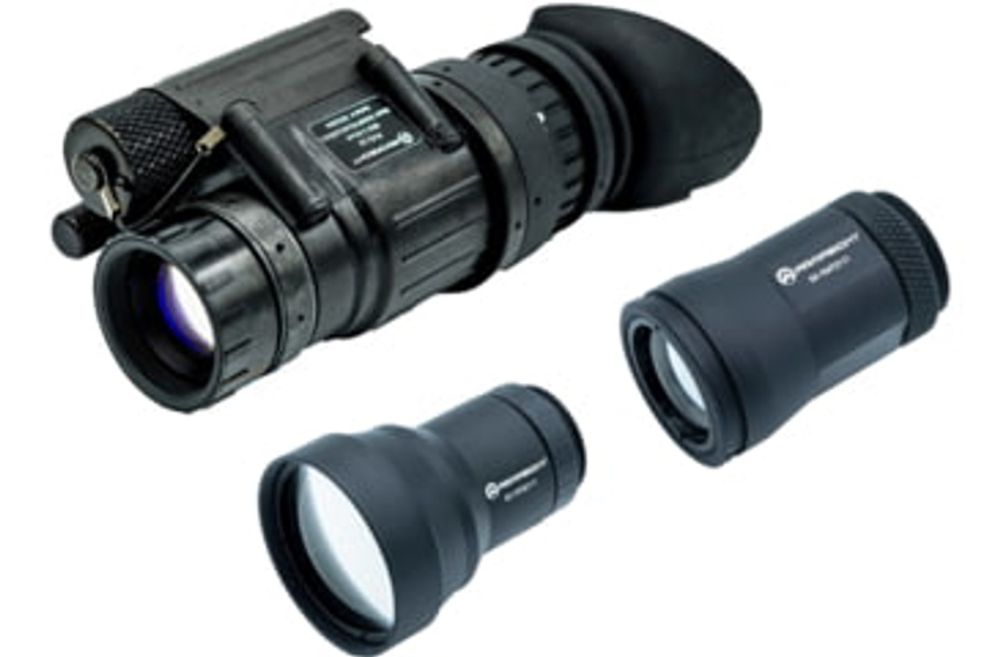

This kit includes a 3x and 6x magnifier lens, enabling you to achieve enhanced magnification and complete your missions with confidence using the battle-proven Armasight PVS-14.
The package contents include the PVS-14 Night Vision Monocular with Pinnacle Image Intensifier Tubes, lens cap, eyecup, sacrificial window, demist shield, tethering cord, J-Arm helmet/head mount adapter, head mount assembly ("Skullcrusher"), product manual, lens cloth, soft carrying case, AA battery, 3x magnifier lens, 6x magnifier lens, and a 3-year limited warranty with registration.
Armasight Generation 3 Pinnacle / Pinnacle 2376 Image Intensifier Tubes provide the best combination of price and performance. With significantly fewer blemishes compared to Bravo tubes and a minimum of 2000 FOM, the Pinnacle IITs offer clear visuals of your target of interest. Designed for experienced users, these NV systems are trusted by law enforcement, hunters, and enthusiasts.
The Pinnacle 2376 Image Intensifier Tubes deliver the same excellent picture quality as the Pinnacle tubes but guarantee a minimum of 2376 FOM, ensuring exceptional performance in the field.
Specifications of the PVS-14 Gen 3 Pinnacle Monocular include a Gen 3 Thin-Filmed Manual Gain Control image intensifier tube, a resolution of 64-81 lp/mm, and a maximum allowed spot size of 0.003" or greater in Zone 1. The monocular features a built-in infrared illuminator, an IR indicator in the field of view, and a magnification of 1x.
With an F1.2; 27mm lens system, a wide 40° field of view, and a focus range from 0.25m to infinity, you'll enjoy clear and precise vision. The PVS-14 offers a diopter adjustment range of -6 to +2 dpt, runs on a single AA (1.5V) battery with a battery life of 50 hours, and has a low battery indicator in the field of view.
Boasting an IP67 environmental rating, the PVS-14 is built to withstand challenging conditions. It operates in temperatures ranging from -51° C to +49° C (-60° F to +120° F) and can be stored in temperatures from -51° C to +85° C (-60° F to +185° F). The dimensions of the monocular are 114 x 51 x 57mm (4.5 x 2 x 2.25in), and it weighs 0.35kg (12.4oz).
With a 3-year warranty upon registration, the Armasight Gen 3 Pinnacle PVS-14 Multi-Purpose NV Monocular is the pinnacle of night vision technology, delivering exceptional performance and reliability in the field. Elevate your night vision capabilities and experience the Armasight advantage today.
With the Gen 3 Pinnacle PVS-14 Monocular, you have the freedom to choose between Pinnacle image intensifier tubes with a minimum of 2000FOM or premium Pinnacle 2376 tubes with a guaranteed minimum of 2376 FOM. These Pinnacle tubes, exclusively available in Ghost White Phosphor, are the preferred choice of elite special operators worldwide.
The PVS-14 is not just versatile, but also compatible with a range of accessories, allowing you to utilize it as a handheld device, head- or helmet-mounted night vision monocular. You can even adapt it for use with various camera systems, expanding its functionality to suit your specific needs.
Equipped with an integrated infrared (IR) illuminator, the PVS-14 enhances the available light, providing detailed images at closer distances. Additionally, the manual gain control allows you to adjust the brightness according to your preference, ensuring optimal visibility in any situation. The Gen 3 Pinnacle Armasight PVS-14 is exclusively available in ghost white phosphor.
This kit includes a 3x and 6x magnifier lens, enabling you to achieve enhanced magnification and complete your missions with confidence using the battle-proven Armasight PVS-14.
The package contents include the PVS-14 Night Vision Monocular with Pinnacle Image Intensifier Tubes, lens cap, eyecup, sacrificial window, demist shield, tethering cord, J-Arm helmet/head mount adapter, head mount assembly ("Skullcrusher"), product manual, lens cloth, soft carrying case, AA battery, 3x magnifier lens, 6x magnifier lens, and a 3-year limited warranty with registration.
Armasight Generation 3 Pinnacle / Pinnacle 2376 Image Intensifier Tubes provide the best combination of price and performance. With significantly fewer blemishes compared to Bravo tubes and a minimum of 2000 FOM, the Pinnacle IITs offer clear visuals of your target of interest. Designed for experienced users, these NV systems are trusted by law enforcement, hunters, and enthusiasts.
The Pinnacle 2376 Image Intensifier Tubes deliver the same excellent picture quality as the Pinnacle tubes but guarantee a minimum of 2376 FOM, ensuring exceptional performance in the field.
Specifications of the PVS-14 Gen 3 Pinnacle Monocular include a Gen 3 Thin-Filmed Manual Gain Control image intensifier tube, a resolution of 64-81 lp/mm, and a maximum allowed spot size of 0.003" or greater in Zone 1. The monocular features a built-in infrared illuminator, an IR indicator in the field of view, and a magnification of 1x.
With an F1.2; 27mm lens system, a wide 40° field of view, and a focus range from 0.25m to infinity, you'll enjoy clear and precise vision. The PVS-14 offers a diopter adjustment range of -6 to +2 dpt, runs on a single AA (1.5V) battery with a battery life of 50 hours, and has a low battery indicator in the field of view.
Boasting an IP67 environmental rating, the PVS-14 is built to withstand challenging conditions. It operates in temperatures ranging from -51° C to +49° C (-60° F to +120° F) and can be stored in temperatures from -51° C to +85° C (-60° F to +185° F). The dimensions of the monocular are 114 x 51 x 57mm (4.5 x 2 x 2.25in), and it weighs 0.35kg (12.4oz).
With a 3-year warranty upon registration, the Armasight Gen 3 Pinnacle PVS-14 Multi-Purpose NV Monocular is the pinnacle of night vision technology, delivering exceptional performance and reliability in the field. Elevate your night vision capabilities and experience the Armasight advantage today.
